Model

Position

Magnet

DCR
(kohm)

Output
mV

Option

S21

N / M

AlNico 5

12.5

110

☐ White
 ▆ Black
▆ Ivory

S22

M / B

16.2

135







Have you trouble with hum noise?
Need single coil sound?
Here is HUM canceled and Noise Shielded AlNiCo Single pickup!
To keep AlNiCo single sound, This pickup use 80% hum canceling balance
S21 is recommended for neck and middle position, S22 is for bridge position.
No need reverse wiring for middle position. it's already hum canceled!

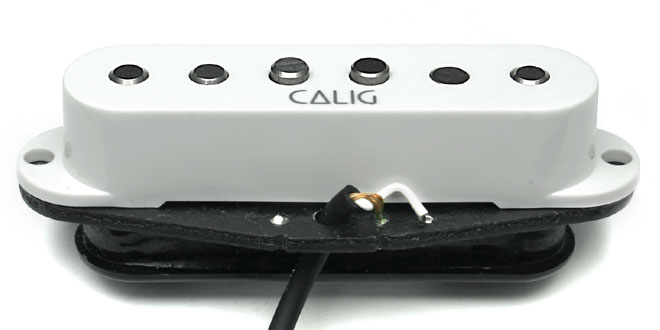

Cali Noiseless

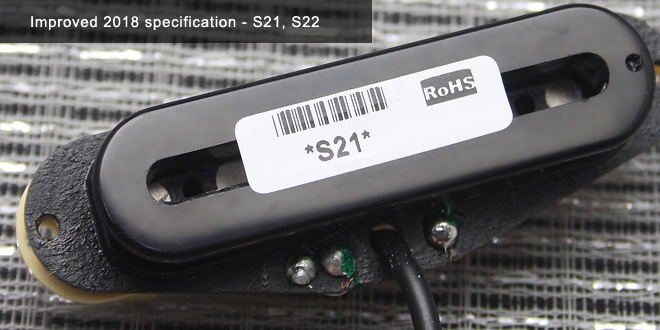

S21, S22
AlNiCo 5 with Hum noise canceling


Common Features

  • Pole spacing: 52mm
  • Standard STRAT single size
  • Vacuum-wax potting processed

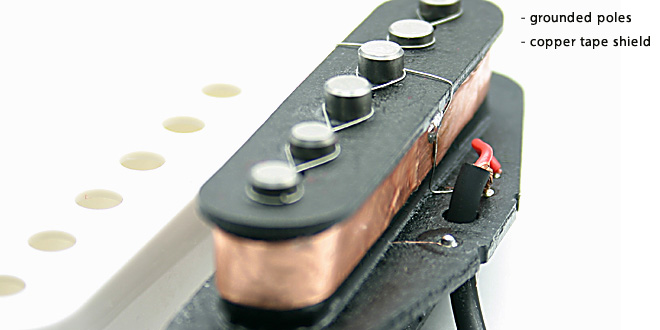

  • Copper tape shilded bobbin
  • Wiring: 1 core , shield cable
  • Structure: Single
  • Cover:  ☐White, ▆Black, ▆Ivory

Tone Characters



Internal Wiring Diagram

Depth Requirement: minimum 20mm from body surface, (22.5mm from pickquard surface)

* Most of modern guitars has over 20mm of depth
* Some vintage models has 15mm of depth
